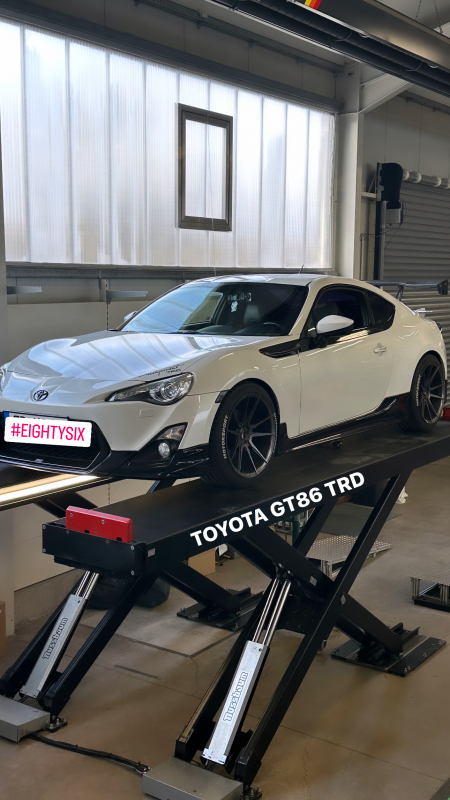

DTH valve controlled exhaust GT86 & BRZ TRD

DTH builds the first legal valved exhaust system for the JDM classics GT86, and to cover the special editions, we have also adapted it to the spoiler design of the TRD models with a 4-pipe look.

Specifications:

• Pipe Diameter: 63.5mm
• Dual valve control to comply with legal limits
• ECE-approved – no registration required!
• Noise levels:
  • Valves closed: 78dB / 80dB
  • Facelift model, valves open: 106dB
  • Pre-facelift model, valves open: Info to follow!

Valve Control & Modes:

The valve control is switchable via Track Mode. When Track Mode is activated, the valves close only within the legally required speed/RPM range for maximum legal sound.
In Normal Mode, the valves remain closed in all gears up to 30% throttle load and 5000 RPM for optimal long-distance comfort.

Modular Exhaust System:

The system is fully adjustable on the vehicle. The rear muffler, outlet bends, and tailpipes can be precisely aligned and set.

Valve Operation Chart:

Control System Update:

The system now recognizes Track Mode when pressing the ESP button twice, enabling Track Mode sound while keeping ESP/ABS activated.

Registration & Installation:

• The exhaust system has an ECE approval, meaning no additional registration is required. However, we still offer registration at our facility if needed.
• The vacuum system for valve control and the CAN bus-based control unit are included in the package.
• A detailed installation guide is available to help you install the system yourself – we are happy to provide it upon request.

Tailpipe Options:

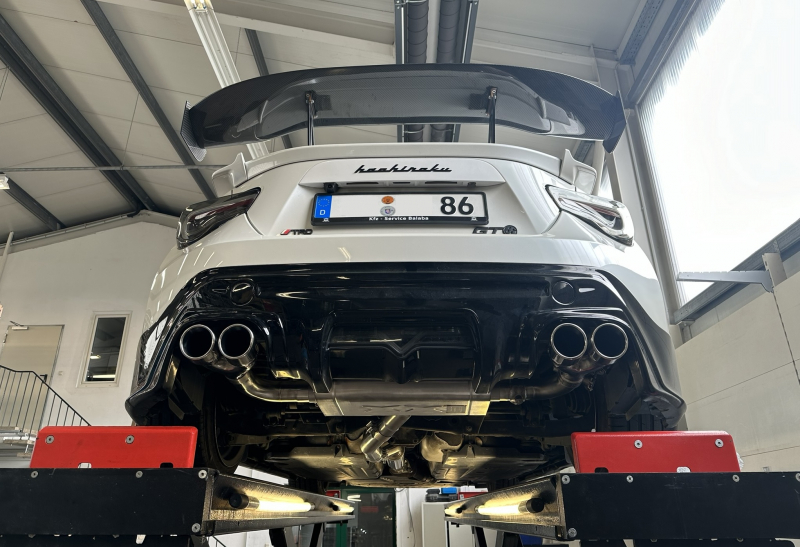

The pipes shown in the pictures are 4 x 90mm with a rolled edge. Other sizes are available upon request.
